| Features |
| platform capacity |
180(50cabin) daN(Kg) |
| towing capacity |
7000 daN(Kg) |
| power [Electric(battery),Diesel,LPG] |
electric |
| control [tiller,steering wheel-pedestrian-rider] |
steering wheel-rider |
| tyres [V=superelastic-L=pneumatic] |
V/V front/rear |
| wheels [number (x=drive wheel)] |
1/x2 front/rear |

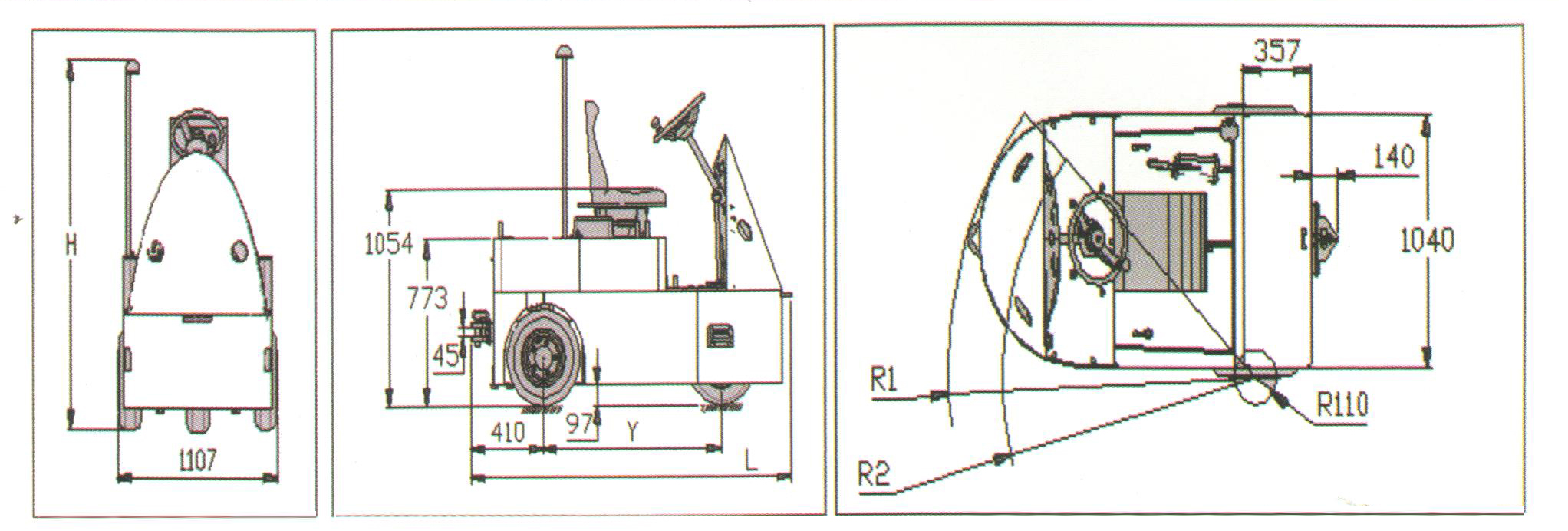

| Dementions |
| Loading platform [length × width] |
mm |
| Loading platform [height from floor unloaded] |
mm |
| overall dimensions [L overall length] |
mm |
| overall dimensions [B overall width with/without cabin] |
mm |
| overall dimensions [height with/without cabin] |
mm |
| towing coupling [height from floor unloaded] |
mm |
| turning radius [R1. MAX outside] |
mm |
| turning radius [R2. min outside] |
mm |
| turning radius [r inside minimum pivoting point] |
mm |
| working aisle width [a1 aisle for threee points turn] |
mm |
| working aisle width[a2 90° turn for equal aisles] |
mm |
| Performance |
| speeds [traction with/without rated drawbar pull] |
7.0/17.0 kmh |
| speeds [lift] |
- m/s |
| speeds [descent] |
- m/s |
| drawbar pull [at drawbar continuous] |
180 daN(Kg) |
| max drawbar pull [at drawbar] |
560 daN(Kg) |
| gradeablity [with/without rated drawbar pull] |
0 % |
| max gradeablity [with/without rated drawbar pull] |
0 % |
| Weight |
| weight [truck complete with battery910] |
1350 daN(Kg) |
| axles load [front/rear] |
650/700 daN(Kg) |
| Chassis |
| wheels [quantity] |
1/2 front/rear |
| wheels [front wheels size] |
18×7-8 |
| wheels [rear wheels size] |
18×7-8 |
| wheelbase [y] |
1091 mm |
| track [at wheels centres] |
936 mm |
| ground clearance [with load] |
95 mm |
| ground clearance [at centre of wheelbace] |
95 mm |
| pedal(1),parking(2), on tiller(3) |
1/2 |
| breaks [mechanical(1) ,hydraulic(2) e.magnetic(3)] |
1/2 |
| breaks [type] |
- front/rear |
| suspensions [axle] |
elastic components front/rear |
| Controls |
| Battery [DIN 43531-A] |
43531-A |
| Battery [V/Ah (5h rate)] |
48/375 V/Ah |
| Battery [weight] |
540 daN(Kg) |
| electric motors [drive motor (KB 60)] |
2×5 KW |
| drive controls [type] |
solid state control |
| gearbox [type] |
ZF-GP20 |
