| Characteristics |
| drawbar pull |
2205/10000 Ibs/N |
| towing capacity |
daN(Kg) |
| Power Unit |
L.P.G-gasoline |
| Operatin type |
Rider tow truck |
| Tire type |
Pneumatic |
| Wheels(X-driven) [front/rear] |
2./2 |

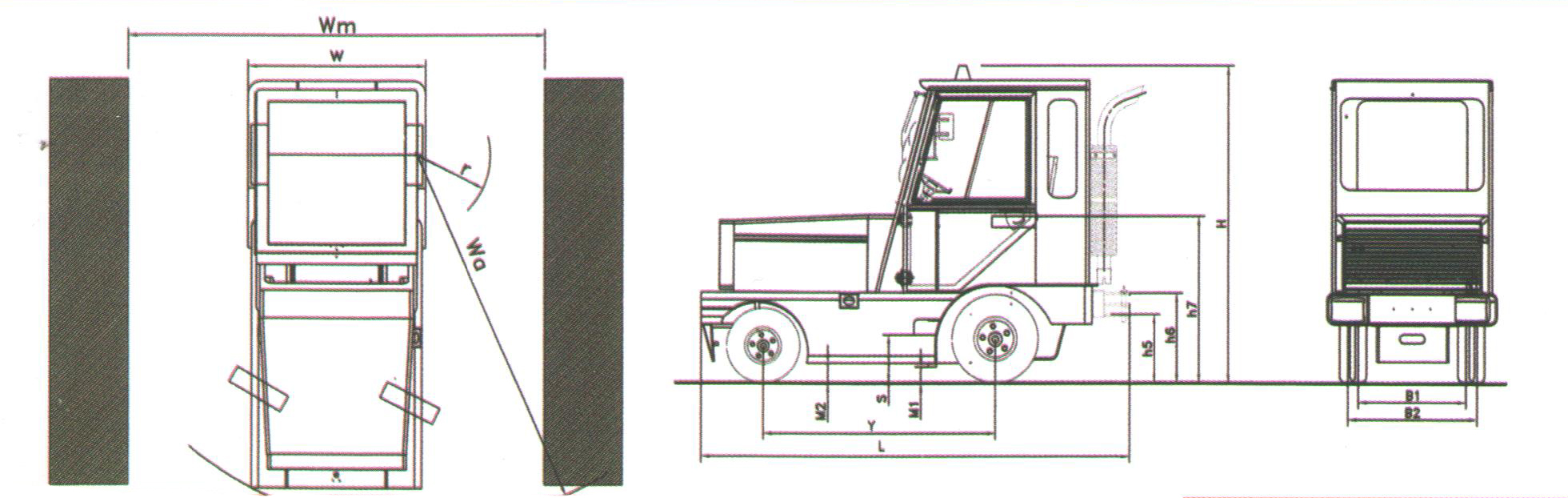

| Dementions |
| Overall Dimensions (L) [Length] |
110/3056 in/mm |
| Overall Dimensions (w) [width over tire] |
46/1164 in/mm |
| Overall Dimensions (H) [Height,with cab |
92/2340 in/mm |
| Overall Dimensions (h6) [Hook height Max] |
26.3/670 in/mm |
| Overall Dimensions (h5) [Hook height Min] |
19.7/500 in/mm |
| Overall Dimensions (h7) [Seat height] |
44.5/1130 in/mm |
| Overall Dimensions (S) [Step height] |
16/415 in/mm |
| Turning Radius (Wa) [outside] |
97/2460 in/mm |
| Turning Radius(r) [Inside] |
25.5/650 in/mm |
| Intersection aisle(Wm) [Widths,Minimum] |
84/2140 in/mm |
| Performance |
| Speed MAX [Travel speed,with load] |
22 km/h |
| Speed MAX[Travel speed ,without load] |
22 km/h |
| Speed on 10% grade [with load] |
12 km/h |
| Speed on 10% grade [without load] |
22 km/h |
| Chassis |
| Tyres [number front/rear] |
2./2 |
| Tyres [size front] |
6.00x9 in/mm |
| Tyres [size rear] |
7.00x12 in/mm |
| Wheelbase (Y) |
64/1630 in/mm |
| Track(B1)[front] |
38/964 in/mm |
| Track(B2)[rear] |
37.8/961 in/mm |
| Ground Clearance (m2) |
8.5/215 in/mm |
| Ground Clearance (m1) |
6.5/165 in/mm |
| Service Brake [Actuation/type] |
4wheel drum |
| parking Brake [Actuation/type] |
Mecanical |
| Drive Line |
| Battery [Volts/cold cranking amps] |
12/120 V/Ah |
| Engine [Manufacturer] |
ITM CO. |
| Engine [Model] |
4/236-Motorsazan |
| Engine [Rated output] |
76.4/59/2600 hp/kw/rpm |
| Engine [Torque] |
260/1400 Nm/rpm |
| Engine [Speed,maximum governed] |
2600 rpm |
| Engine [Cycle/Cycle/cc. displacement No/No/cm3 |
4/4/3860 No/No/cm3 |
| Gearbox [type of gearchange] |
convertor and power shift |
| Gearbox [No firstgear/reverse] |
1./1 |
| Gearbox [Type] |
drodynamic |
